Locksmith Charley's Transponder Information Page

LEXUS / SCION / TOYOTA VEHICLES

LEXUS / SCION / TOYOTA VEHICLES KEYS

Explanation of Master / Valet / RKE concepts - CLICK HERE

Many of the key blank listings o

Many of the key blank listings on this website are linked to a table containing cross-reference information and photographs.
ILCO is an aftermarket  manufacturer of key blanks.
STRATTEC is an Original Equipment Manufacturer (OEM) of key blanks for many automobile manufacturers.
STRATTEC makes many remote headed key blanks that ILCO and others do not make.
Some of the links under the ILCO column may link to and display photographs of keys actually manufactured by STRATTEC or others. Any time a key blank reference is made in RED that is an indication that it is an OEM Part Number and it is typically available only from a dealer or possibly used from another source.

GM VATS keys contain a resistor pellet valued numerically at #1 - #15.
You must use the correct value resistor for your car or it will not start or run.

DISCLAIMER / DONATIONS

As you can see I have superseded the information from the paragraph below. I have left it here so that you can watch as the state of the art in locksmithing changes. I have recently upgraded my machine that will permit me to "flash" or re-program the ECM computers for Toyota and Lexus automobiles so now I am also able to flash Toyota, Lexus, Acura, and  Honda immobilizer boxes as well.

Now if you lose all of your keys or have only a valet key available for only $150.00 I can render your ECM back to its original state ready to accept new transponder keys. This service is available at my residence in MESA AZ and now I am pleased to announce that I am able to take my Toyota/Lexus flashing show on the road (in the greater Phoenix metro area) too!   Of course, as always, mail-in service is available.             BluechipBook


If you wish to bring in to my location or ship your ECM to me,  print out the form at
http://www.locksmithcharley.com/toyotarelease.doc (Microsoft Word) or
http://www.locksmithcharley.com/toyotarelease.pdf  (Adobe Acrobat reader required)
 and send the ECM and the completed form to:

Locksmith Charley
3000 Clarcona Rd. Lot 1208
Apopka FL 32703
602-483-7695

*** PLEASE INSURE YOUR PACKAGE AND KEEP TRACKING INFORMATION ***


The instructions for programming your keys into the flashed ECM may be found in the document at:
http://www.locksmithcharley.com/toyotapostflash.doc  (Microsoft Word)
or http://www.locksmithcharley.com/toyotapostflash.pdf  (Adobe Acrobat reader required)


This service can save you $1000.00 or more versus the cost of a new ECM computer from the dealer!
After the ECM is flashed (for an additional charge - in the Phoenix metro area only) I can arrange to have a locksmith come to your vehicle, fit keys to it, and get you back on the road the same day (or night!).

Still other vehicles notably the Toyota and Lexus brands are made in such a manner so that if all keys are lost you must replace the entire Electronic Control Module (computer).  For that reason if you have a Toyota or Lexus it is ESSENTIAL that you make sure to have extra keys on hand. The transponder reference book I have says the the Electronic Control Module costs about $1400.00 wholesale and can be as much as $2500.00 retail.

If you have a master key already there are 2 different programming methods depending on the year and model.

***NOTE - Vehicles starting around 2002 and newer will NOT use either of the on-board programming techniques and will require a programming tool to be hooked up to the vehicle's OBDII port for programming. I am able to come to you and perform this service.

On-Board programming "E" instructions are at:
http://www.locksmithcharley.com/toyota-obp-e-instructions.doc  (Microsoft Word) or
http://www.locksmithcharley.com/toyota-obp-e-instructions.pdf   (Adobe Acrobat reader required)

On-Board programming "I" instructions are at:
http://www.locksmithcharley.com/toyota-obp-i-instructions.doc  (Microsoft Word) or
http://www.locksmithcharley.com/toyota-obp-i-instructions.pdf   (Adobe Acrobat reader required)

The chart that I use to determine how to flash a vehicle's computer was provided to me by the vendor of the machine that I use to flash the computers. That chart can be seen by clicking on: http://locksmithcharley.com/flash_info.pdf                       BluechipBook
I had a customer come to my shop the other day and that chart told me that I needed to flash her computer with the
"32 bit" file. Well I did that and the keys would not program into the car. After repeating that cycle a couple times, I contacted the technical support department of the company that provided my equipment. They informed me that Toyota / Lexus during certain years were "inconsistent" and that if the "32 bit" file didn't work that I should flash the computer again with the (older) "16 bit" file. Once I did that the keys programmed up just fine and the customer was on her way.







LEXUS VEHICLES


Lexus    1st   Pgrm Car   Dup   Add  ILCO   Strat. Alternate
1998-01 ES300 yes   F16   yes   yes* TOY40BT4         4C
2002-03 ES300 yes Type 1 F32/SDD   yes   yes* TOY48BT4         4C

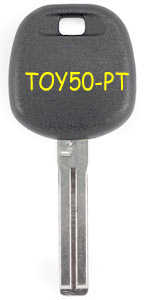

2004-06 ES330 yes Type 2 FD4/SDD   yes   yes TOY50-PT         4D67
1998-00 GS300 yes   F16   yes   yes* TOY48BT4         4C
2002-05 GS300 yes Type 1 F32/SDD   yes   yes* TOY48BT4         4C
1998-00 GS400 yes   F16   yes   yes* TOY48BT4         4C
2001-05 GS430 yes Type 1 F32/SDD   yes   yes* TOY48BT4         4C
2003-07 GX470 yes Type 2 FD4/SDD   yes   yes TOY50-PT         4D67
2001-05 IS300 yes Type 1 F16/32   yes   yes* TOY48BT4         4C
1997 LS400 yes   FD3   yes   yes* TOY48BT4         4C
1998-2000 LS400 yes   F16   yes   yes* TOY48BT4         4C
2001-02 LS430 yes   FD3   yes   yes* TOY50-PT         4D67
2003- LS430 yes   FD3   yes   yes* TOY50-PT         4D67
2004- LS430 yes   FD4   yes   yes* TOY50-PT         4D67
2001-06 LS400 / LS430 yes Type 2 SDD   yes   yes TOY50-PT         4D67
1998-01 LX450 yes   maybe   yes   yes* TOY40BT4         4C
1998-2000 LX470 yes   F16   yes   yes* TOY40BT4         4C
2001-02 LX470 yes Type 1 F32/SDD   yes   yes* TOY40BT4         4C
2003-07 LX470 yes Type 2 SDD   yes   yes TOY50-PT         4D67
1997-2003 RX300 yes   F16   yes   yes* TOY40BT4         4C
2004-06 RX330 yes Type 2 FD4   yes   yes* TOY50-PT         4D67
2004-06 RX330 yes Type 2 SDD   yes   yes* TOY50-PT         4D67
2007-09 RX350 yes Type 2 SDD   yes   yes* TOY50-PT         4D67
2006-09 RX400H yes Type 2 SDD   yes   yes* TOY50-PT         4D67
1998-2000 SC300 yes   F16   yes   yes* TOY40BT4         4C
1998-2000 SC400 yes   F16   yes   yes* TOY40BT4         4C
2002-10 SC430, SC400, SC300 yes Type 2 SDD   yes   yes* TOY50-PT         4D67







SCION VEHICLES


Manufacturer   make   System Program   make   add ILCO   Strattec Alternate   TRANS
Year(s) Model first   transponder   dup   add'l       key blanks        ID
    key   First Key   key   key
************* **************************** ***** *********************************** ************   *****   ****** ************   **************** ****************   *******
SCION   1st   Pgrm Car   Dup   Add  ILCO   Strat. Alternate
2005-07 TC yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-10 TC yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2011 TC yes Toy Type 5 "G" SDD   yes   yes TOY44G-PT         4D72





TOYOTA VEHICLES
Manufacturer   make   System Program   make   add ILCO   Strattec Alternate   TRANS
Year(s) Model first   transponder   dup   add'l       key blanks        ID
    key   First Key   key   key
************* **************************** ***** *********************************** ************   *****   ****** ************   **************** ****************   *******
Toyota   1st   Pgrm Car   Dup   Add  ILCO   Strat. Alternate
1998-03 AVALON XL yes F16 OBP-I   yes   yes TOY43AT4   692062     4C
1998-01 AVALON XL yes F16 OBP-E   yes   yes TOY43AT4   692062     4C
1998-03 AVALON XLS yes F16 OBP-I   yes   yes TOY43AT4   692062     4C
1998-03 AVALON XLS yes F16 OBP-E   yes   yes TOY43AT4   692062     4C

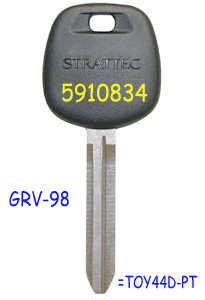

2005-07 Avalon yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-09 Avalon yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2005-09 Avalon  w/ PROX   PROX SDD       yes Dealer Prox
  Old info from 2003 documents - sourcves sometimes conflicted.
1998-01 Camry LE yes F16 OBP-E   yes   yes TOY43AT4   692062     4C
2003-04 Camry 4 CYL-OPT yes F32 OBP-E   yes   yes ORIGINAL
2003-04 Camry XLE yes FD4 OBP-E   yes   yes TOY43AT4   692062
2001-02 Camry XLE yes F32 OBP-E   yes   yes TOY43AT4   692062
1998-00 Camry XLE yes F16 OBP-E   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
1998-2001 No programming access through OBD port - computer must be flashed.
2002-04 Camry yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2003-06 Depending on manufacturer location and the state the car was intended for these cars may be type 1 or type 2
2003-06 Camry yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2003-06 Camry yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2007-11 Camry yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-12 Camry yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
2011-12 Camry w/ PROX   PROX SDD       yes Dealer Prox
2005-08 Corolla yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2009-10 Corolla yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-11 Corolla yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
2007 FJ Cruiser yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-10 FJ Cruiser yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-11 FJ Cruiser yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
  Old info from 2003 documents - sourcves sometimes conflicted.
2003-04 Highlander yes F16 OBP-I   yes   yes ORIGINAL
2002' Highlander yes F16 OBP-I   yes   yes TOY43AT4   692062
2001' Highlander yes F16 OBP-E   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
2001-03 Highlander yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2004-07 Highlander yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-09 Highlander yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2008-09 Highlander   PROX SDD       yes Dealer Prox
  Old info from 2003 documents - sourcves sometimes conflicted.
2003-04 Land Cruiser yes FD4 OBP-I   yes   yes ORIGINAL
2002' Land Cruiser yes F32 OBP-I   yes   yes TOY43AT4   692062
2001' Land Cruiser yes F32 OBP-E   yes   yes TOY43AT4   692062
1998-00 Land Cruiser yes F16 OBP-E   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
2001-02 Land Cruiser yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2003-07 Land Cruiser yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2005-07 Matrix yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-10 Matrix yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2002-04 MR2 Spider yes F16 OBP-I   yes   yes TOY57-PT         4C
2001' MR2 Spider yes F16 OBP-E   yes   yes TOY57-PT         4C
  Old info from 2003 documents - sourcves sometimes conflicted.
2003' Prius yes FD3 OBP-I   yes   yes ORIGINAL
2002' Prius yes FD3 OBP-I   yes   yes TOY43AT4   692062 TOY43AT4   692062
2001' Prius yes FD3 OBP-E   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
2001-03 Prius yes Immo box 1 requires flashing           TOY43AT4   692062     4C
2004-08 Prius yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2004-09 Prius w/ PROX yes PROX SDD       yes Dealer Prox
2010-11 Prius w/ PROX yes PROX SDD       yes Dealer Prox
2004-06 RAV 4 yes Type 2 or type 4 SDD       yes TOY44D-PT   5910834     4D67
2007-10 RAV 4 yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-12 RAV 4 yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
  Old info from 2003 documents - sourcves sometimes conflicted.
2003-4 Sequoia yes FD3 OBP-I   yes   yes ORIGINAL
2002' Sequoia yes F32 OBP-I   yes   yes TOY43AT4   692062
2001' Sequoia yes F32 OBP-E   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
2001-02 Sequoia yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2008-10 Sequoia yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2011-12 Sequoia yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
2003' Sienna Van yes F16 OBP-I   yes   yes ORIGINAL
2002' Sienna Van yes F16 OBP-I   yes   yes TOY43AT4   692062
1999-01 Sienna Van yes F16 OBP-E   yes   yes TOY43AT4   692062
2004-08 Sienna Van yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-10 Sienna Van yes Type 2 or CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2011-12 Sienna Van yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
2011-12 Sienna Van  w/ PROX   PROX SDD       yes Dealer Prox
  Old info from 2003 documents - sourcves sometimes conflicted.
2003-04 Solara 4 CYL-OPT yes F32 OBP-E   yes   yes ORIGINAL
2003-04 Solara XLE yes FD4 OBP-E   yes   yes TOY43AT4   692062
2001-02 Solara XLE yes F32 OBP-E   yes   yes TOY43AT4   692062
1998-00 Solara XLE yes F16 OBP-E   yes   yes TOY43AT4   692062
1999-2003 Solara SE,SLE yes   maybe   yes   yes TOY43AT4   692062
  Newer info from 2012-2013 documents from ILCO, Strattec, Advanced Diagnostics, JMA, and online info
2002-03 Solara yes Type 1 SDD   yes   yes TOY43AT4   692062     4C
2004-06 Solara yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2007-09 Solara yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2005-08 Tacoma yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2009-10 Tacoma yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2007-10 Tundra yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-2011 Tundra yes Type 5 "G" SDD   yes   yes TOY44D-PT   5910834     4D72
2009-10 Venza yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-2011 Venza yes Type 5 "G" SDD   yes   yes TOY44D-PT   5910834     4D72
2009-11 Venza w/ PROX   PROX SDD       yes Dealer Prox
2007 Yaris yes Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2008-11 Yaris yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2010-12 4-Runner  w/ PROX   PROX SDD       yes Dealer Prox
2010-12 4-Runner yes Type 5 "G" SDD   yes   yes TOY44G-PT         4D72
2009 4-Runner yes CAN SDD   yes   yes TOY44D-PT   5910834     4D67
2003-08 4-Runner yes F-D4   Type 2 SDD   yes   yes TOY44D-PT   5910834     4D67
2001-02 4-Runner yes F32 Type 1  OBP-I   yes   yes TOY43AT4   692062     4C
1998-01 4-Runner yes F16 OBP-E   yes   yes TOY43AT4   692062     4C









TOYOTA / LEXIS / SCION KEYS





ILCO STRATTEC DESCRIPTION PHOTOS
TOY40BT4   LEXUS

High Security - Long blade

4C Chip Encrypted
TOY48BT4   LEXUS

High Security - Short blade

4C Chip Encrypted


TOY50-PT
TOY44D-PT 5910834 Toyota

TR47 keyway "dot" key
TOY44G-PT   Toyota

TR47 keyway "G" key
TOY43AT4 692062

Toyota

TR47 keyway

Transponder Chip "4C"
TOY57-PTval



Discussion of Master / Valet / RKE concepts

There seems to be considerable confusion among consumers as to the definitions and functionality of the terms "MASTER", "VALET" and "RKE" as used with various manufacturers' cars. These differences are particularly significant in Toyota/Lexus vehicles.

MECHANICAL vs PROGRAMMING (ELECTRONIC) ATTRIBUTES

A Toyota or Lexus key has several attributes and they can be inter-mixed in non-traditional configurations.

A MECHANICAL master key is manufactured so that it will operate any lock on the vehicle. A MECHANICAL valet key typically will open the doors and turn the ignition however will not operate the glove box or trunk locks.

ELECTRONICALLY speaking, a key programmed as a master key will permit the user to enter programming mode in cars that are equipped for "On Board Programming" and will permit technicians to quickly program additional keys as opposed to a 30 minute delay to reset the immobilizer function.

A mechanical master key may be programmed into the computer as a either a master key or a valet key.
A mechanical valet key may be programmed into the computer as a either a master key or a valet key.

RKE is "Remote Keyless Entry" and can be accomplished with buttons on the head of the key or a separate fob. A key with RKE buttons on the head may be programmed into the computer as a either a master key or a valet key. Just because a key has RKE Buttons on the head of the key does not mean it is programmed into the car's computer as a "Master" key.

The way to identify how a particular key is electronically programmed into the car is as follows:
1. Locate / identify the "security" light - it should be blinking all the time when no key is in the ignition.
2. Watch the security light as you insert a key into the ignition. One of 3 things will happen:
    (a) light continues blinking = unrecognized key
    (b) light stays on 1-3 seconds before going off = valet key
    (c) light goes off immediately or does not blink again = master key.

In earlier models* of Toyota and Lexus vehicles if you don't have a key that is electronically programmed as a master key, in order to add more keys either the car's computer (ECU - Engine Control Unit) or the Immobilizer box will need to come out of the car and be "flashed" or re-programmed.
*most Toyota & Lexus vehicles after 2002 can be programmed through the OBD-II port - a notable exception is the Sequoia which needs to be flashed up to 2007.
